Fireplace Emissions

Buckley Rumford Fireplaces
Emissions Results
Standard 36" Masonry Fireplace

4/17/07

Crib size determined by Draft Method algorithm: Firebox "adjusted" volume = 5.09 cu.ft. at 25% a loading factor means each of two cribs has a volume of 1.2725 cu.ft. (2,199 cu.in) or, using a 15% loading factor, 0.7635 cu.ft. (1,320 cu.in.)
Using the 15% loading factor should result in crib weights of about 30 pounds.
3.5"x3.5"x107.75"=1,320 - six 18" 4x4s
Yet weight of fuel in run numbers 7-12 are around 15 to 19 lbs.
Proposed crib size based on opening area:
Hearth dimensions of the 36" masonry fireplace are as follows. In the shape of a trapezoid the rear is 24" and the front is 36". Depth front to back is 17". Height to the opening is 24".
Firebox Volume - 12,240 cu.in. (7.08 cu.ft.)
Opening Area - 864 sq.in. (6 sq.ft.)
Fuel crib loading factor of 4 x 6 sq.ft. would be 24 lb.

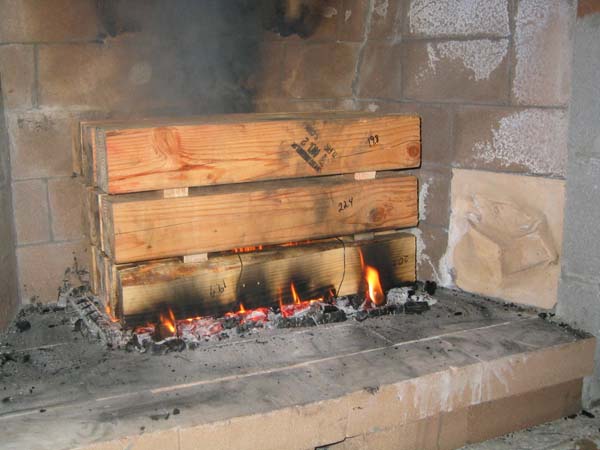

Run numbers 1-3 are no grate with .25 loading factor.
Run, Burn Rate, Emissions, Kindling, First Load, Second load, Third load (pounds)
1: 9.33 kg/hr, 5.0 g/kg, 6.6, 38.4, 47.8, 45.2
2: 9.78 kg/hr, 5.1 g/kg, 6.6, 44.1, 50.2, 49.4
3: 8.73 kg/hr, 5.2 g/kg, 6.3, 45.3, 51.1, 47.4

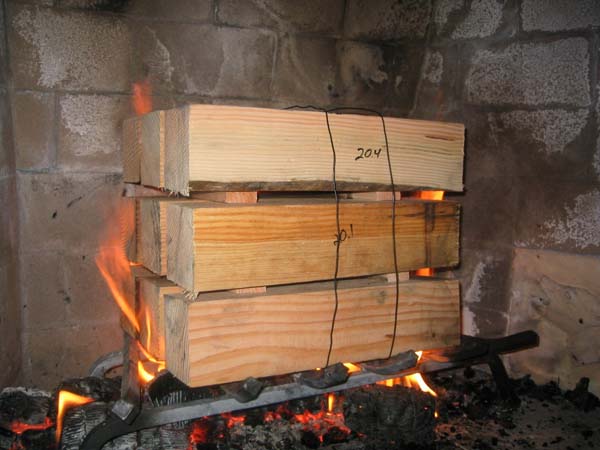

Run numbers 4-6 are using the supplied horizontal grate .25 loading factor.
4: 7.07 kg/hr, 7.3 g/kg, 4.5, 30.0, 33.9, 35.5
5: 6.94 kg/hr, 6.7 g/kg, 4.5, 29.1, 30.8, 31.4
6: 6.71 kg/hr, 8.0 g/kg, 5.0, 29.0, 33.7, 34.3

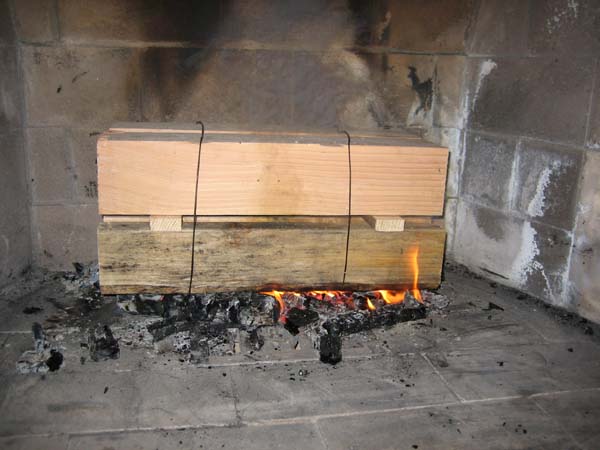

Run numbers 7-9 are using no grate and .15 loading factor.
7: 3.74 kg/hr, 12.3 g/kg, 4.6, 15.1, 18.1, 18.7
8: 3.96 kg/hr, 10.5 g/kg, 4.8, 15.6, 19.1, 18.0
9: 3.90 kg/hr, 11.7 g/kg, 5.4, 15.5, 14.3, 17.7

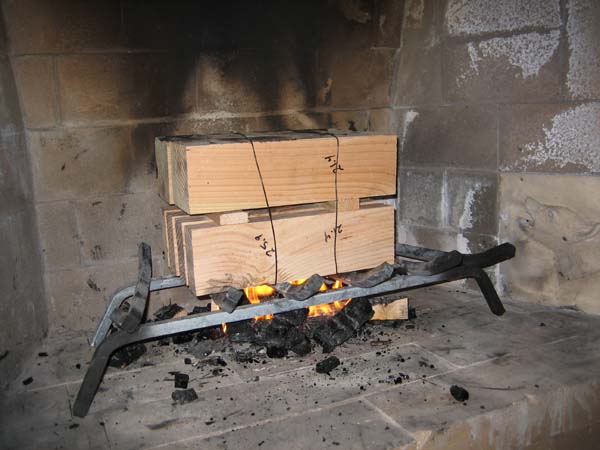

Run 10 uses a horizontal grate .15 loading factor.
10: 2.89 kg/hr, 15.0 g/kg, 3.7, 11.8, 15.6, 14.9
Run numbers 11-12 are using a vertical grate. Fueling is the same as that used in run numbers 7-9, run 12 uses vertical spacers in the fuel load.
11: 3.76 kg/hr, 11.0 g/kg, 4.9, 16.8, 18.4, 18.8
12: 3.06 kg/hr, 12.5g/kg, 4.9, 17.5, 19.2, 17.9
